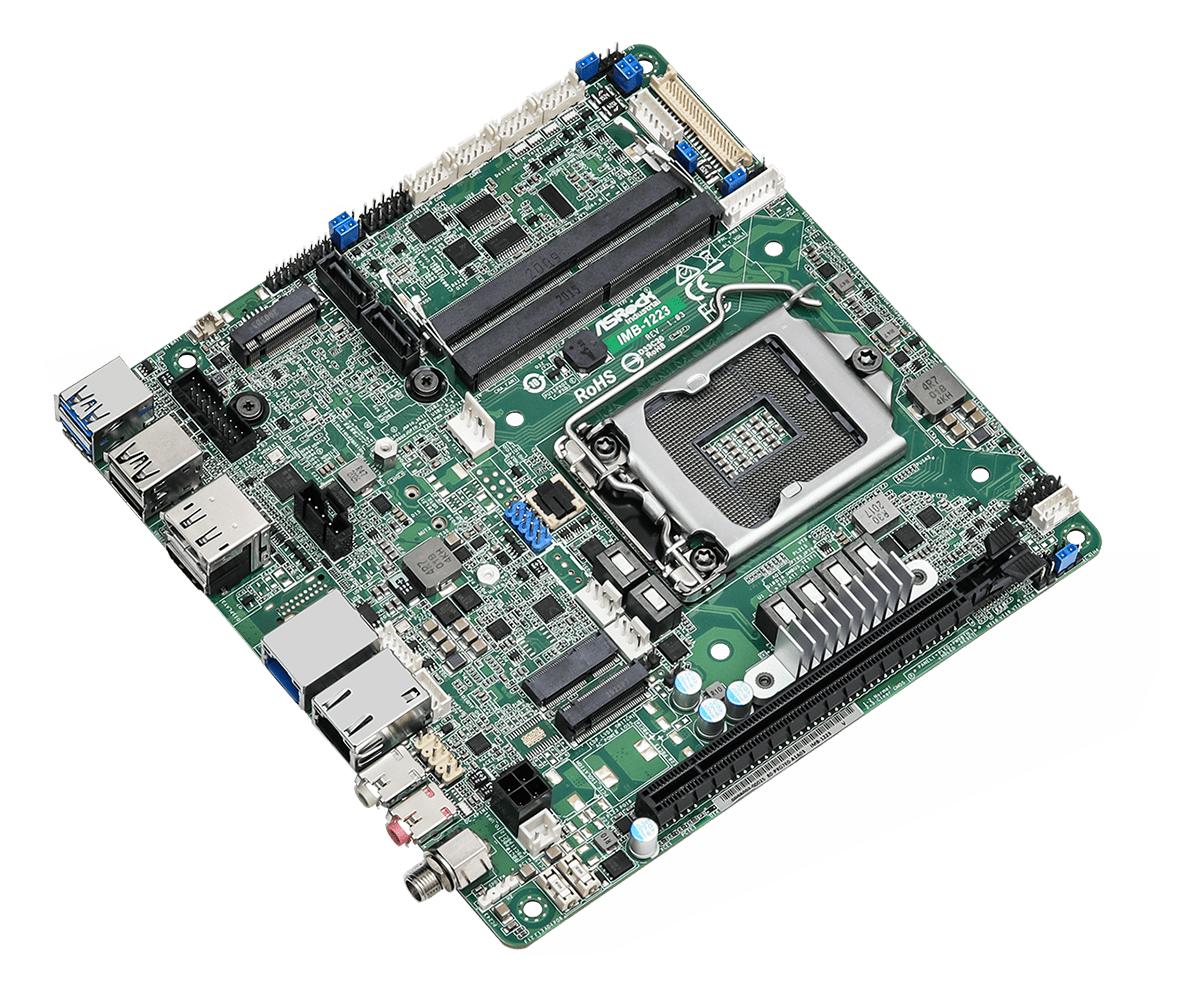

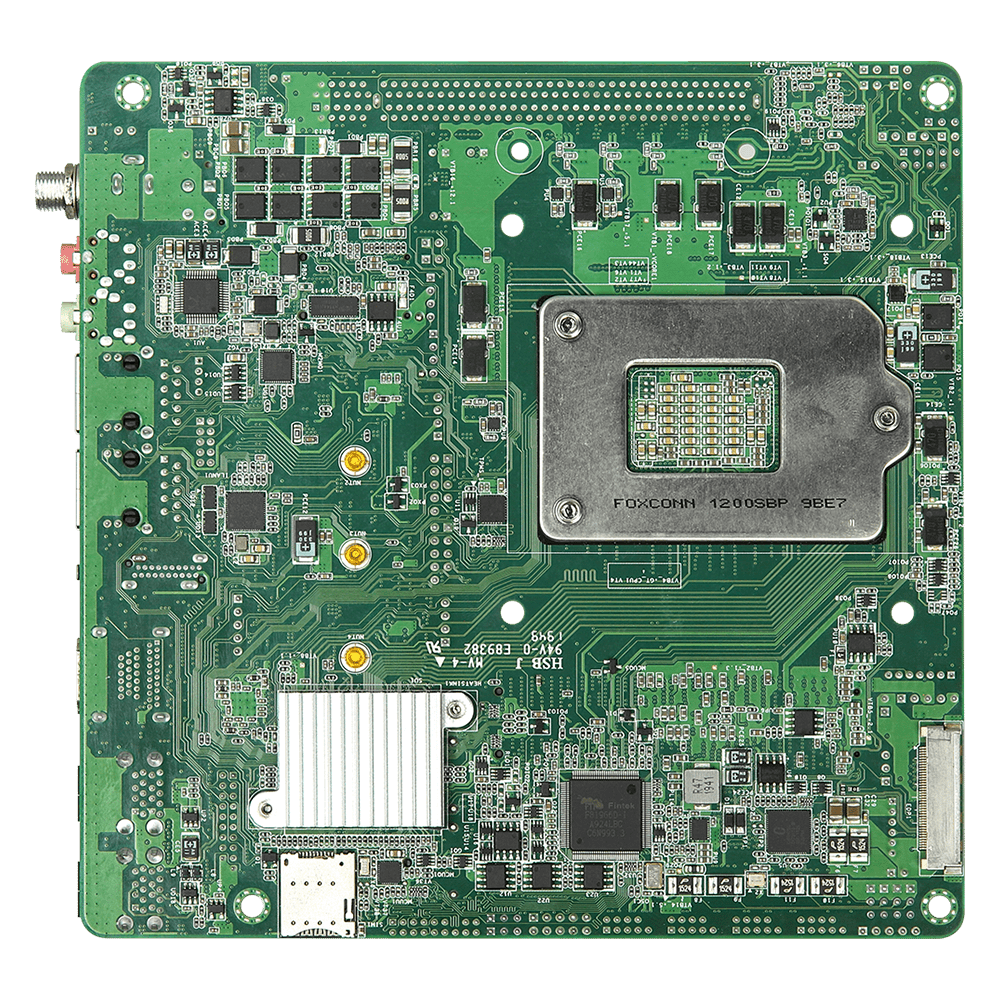

Mini-ITX Motherboard

●Intel® 10th Gen (Comet lake-S) Core™ Processors with H420E chipset
●2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB

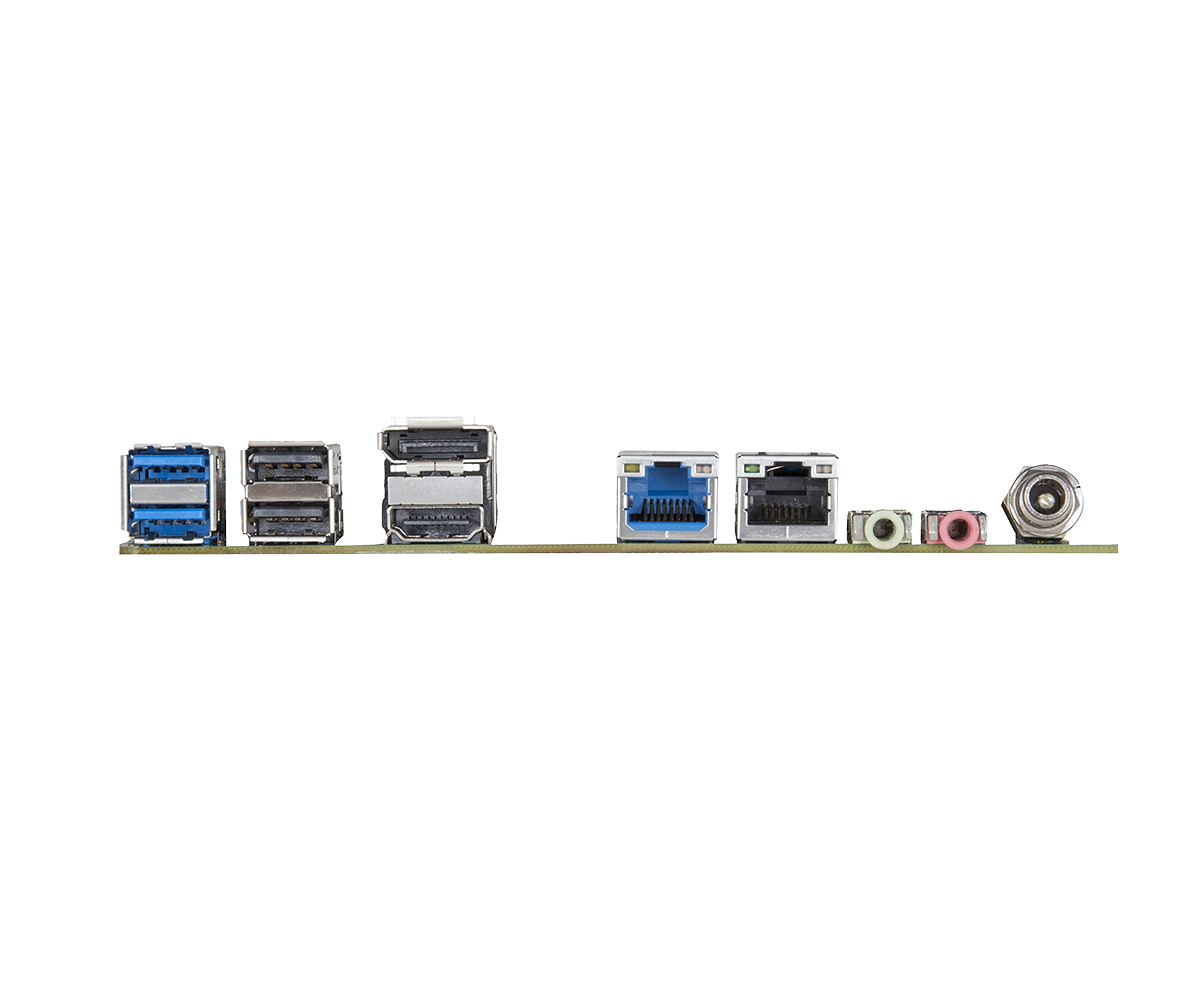

●1 x PCIe x16 Gen3, 4 x USB 3.2 Gen1, 4 x USB 2.0
●1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
●1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
●Support Dual display, 1 x DP 1.2, 1 x LVDS or eDP, 1 x HDMI 2.0a
●1 x VGA(Header)
●12V DC-in

产品型录产品咨询

产品规格

支援下载

CPU	Intel® 10th Gen (Cometlake-S) Core™ Processorss, up to 80W *The performance of CPUs over 80W will be limited due to power design.
Chipset	Intel® H420E
Socket	LGA1200
BIOS	AMI SPI 256 Mbit

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Technology	Dual Channel DDR4 2933 / 2666 / 2400 MHz - Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz - Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz - Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity	64GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Controller	Intel® UHD Graphics
DisplayPort	DisplayPort 1.2 , DP++ Max resolution up to 4096 x 2160@60Hz
eDP	eDP 1.4 Max resolution up to 4096 x 2304@60Hz
MultiDisplay	Dual Display
HDMI	HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz

PCIe	1 x PCIe x16 (Gen3)
M.2	1 x M.2 (Key E, 2230) with PCIe x1 for Wireless 1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.2 Gen1 / USB 2.0 and SIM for 4G / 5G
SIM Socket	N/A (BOM Option support)

Interface	Realtek ALC887/897 HD , High Definition Audio. Line-out, Mic-in

Controller/ Speed	LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel® I219V with 10/100/1000 Mbps
Connector	2 x RJ-45

USB	2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header) 2 x USB 2.0 (1 x 2.54 pitch header)
COM	4, COM1, 2 (support RS-232/422/485), COM3, 4 (support RS-232 only)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1, switch by BIOS default LVDS
eDP	1, switch by BIOS default LVDS
Speaker Header	1
VGA	1
SATA PWR Output	1
Thunderbolt header	1

M.2	1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x2 or SATA3 for SSD
SATA	2 x SATA3 (6Gb/s)

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Input PWR	DC-in 12V
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Gift Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x I/O Shield (13G020625020AK) 1 x I/O Shield THIN (13G020625030AK) 1 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	3 x SCREW M2,D=5 (13G020302031AK) 1 x NUT M2 H=3.35mm (13G020271020AK) 1 x NUT M2 H=6.5mm (13G0201950B0AK) 1 x I/O Shield (13G020625020AK) 1 x I/O Shield THIN (13G020625030AK)
