首页 > 产品系列 > 工业主板 & 单板电脑 > 工业级主机板 > Mini-ITX > IMB-1224V
< >

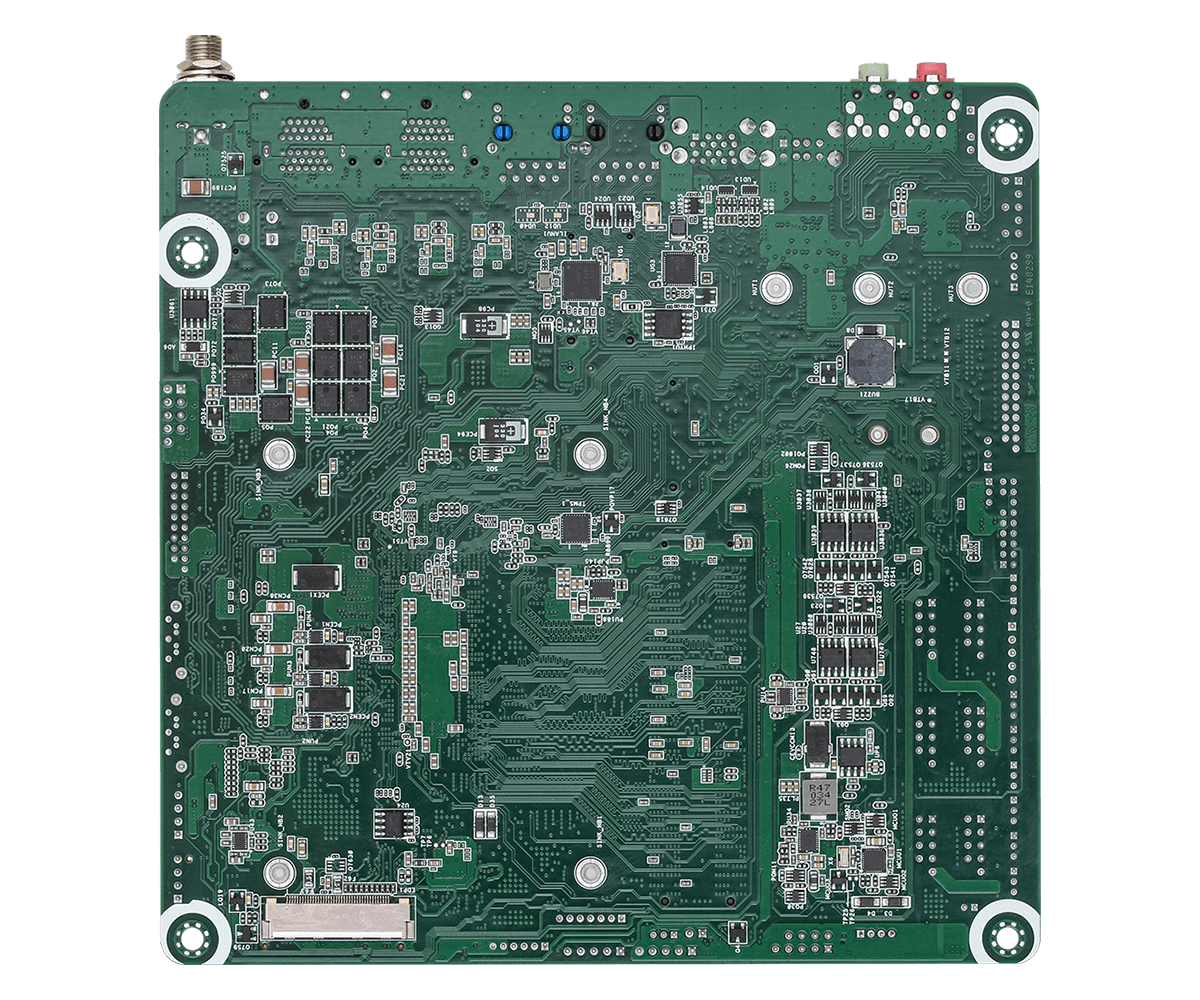

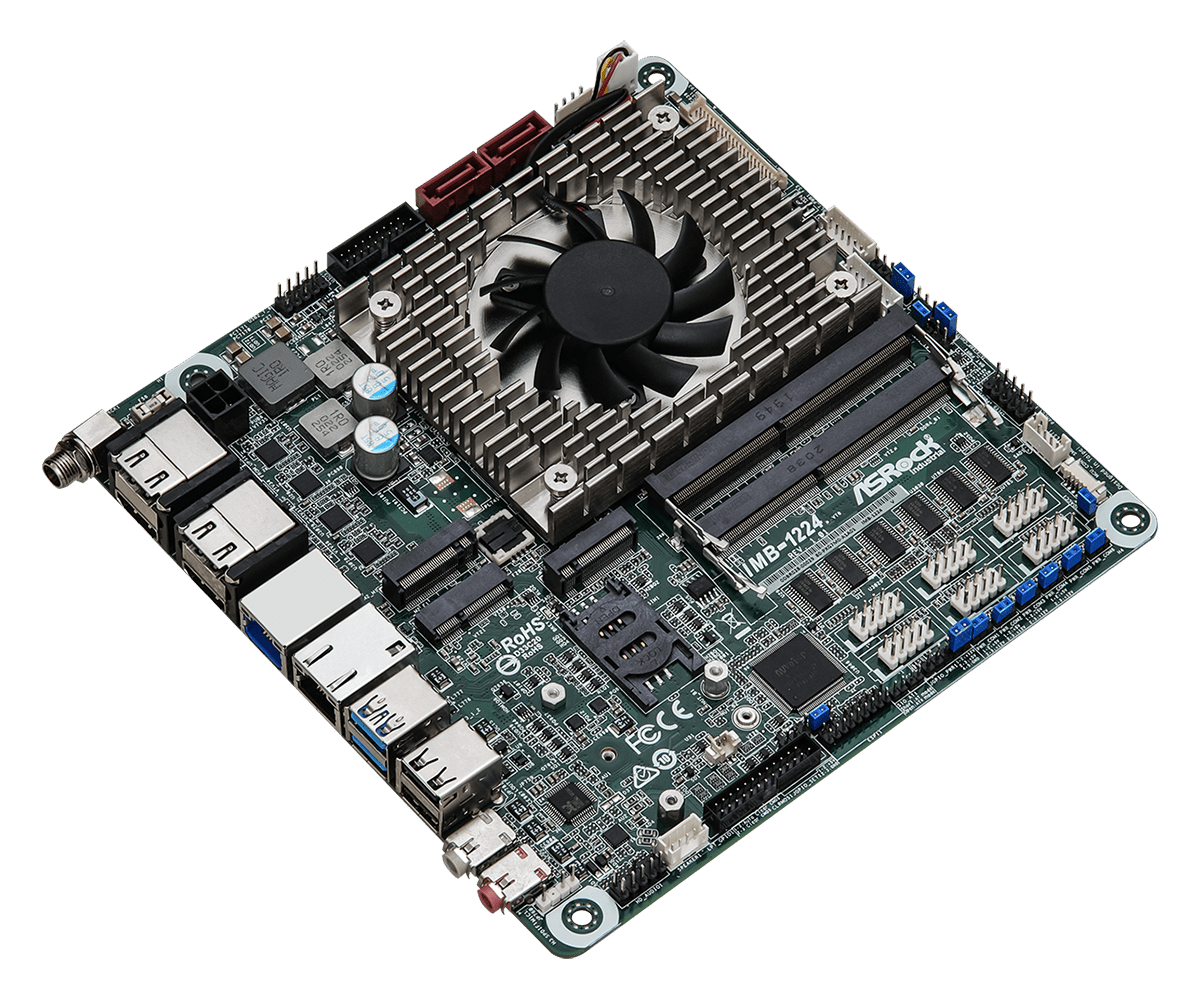

IMB-1224V

Mini-ITX Motherboard

  • ●Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors I3-1115G4E

  • ●2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB

  • ●2 x USB 3.2 Gen2, 1 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 2 x SATA3

  • ●1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN

  • ●Support Quad display, 1 x LVDS, 1 x eDP, 4 x HDMI 2.0b

  • ●TPM 2.0 onboard

  • ●Support Intel® RAID 0/1

  • ●12~28V DC-In(Lockable DC Jack)


产品型录 产品咨询
产品规格
支援下载


Processor System

CPUIntel® 11th Gen (Tiger Lake-UP3) Core™ Processors,up to 28W
I3-1115G4E, DC, Max Speed up to 3.9GHz
ChipsetMCP
BIOSAMI SPI 256 Mbit

Form Factor

DimensionsMini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

TechnologyDual Channel DDR4 3200 MHz
Capacity64GB (32 GB per DIMM)
Socket2 x 260-pin SO-DIMM

Graphics

ControllerIntel® UHD Graphics
eDPeDP
Max resolution up to 4096x2304 60Hz
MultiDisplayQuad Display
HDMI4 x HDMI 2.0b
Max resolution up to 4096x2160@60Hz
LVDSDual channel 24 bit up to 1920 x 1200@60Hz

Expansion Slot

M.21 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless
1 x M.2 (Key B*, 3042/3052) with PCIe x1/USB 3.2/USB 2.0/SATA and SIM for 4G/5G
* Shared with SATA3_1
SIM Socket1x SIM socket connected to M.2 key B

Audio

InterfaceRealtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ SpeedLAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps
Connector2 x RJ-45

Rear I/O

Ethernet1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB2 x USB 3.2 (Gen1), 2 x USB 2.0
HDMI4 x HDMI 2.0b
DC Jack1 (Screw type)
Audio2 (Mic-in, Line-out)

Internal Connector

USB1 x USB 3.2 (Gen1)
3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 3.2 header)
COM4 x COM (RS-232)
2 x COM (RS-232/422/485)
GPIO8 x GPI, 8 x GPO
TPMTPM 2.0 onboard
LVDS1
eDP1
Speaker Header1
SATA PWR Output1
Parallel1

Storage

M.21 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
* Shared with SATA3_0
SATA2 x SATA3 (6Gb/s)
RAIDIntel® SATA RAID 0/1

Watchdog Timer

OutputFrom Super I/O to drag RESETCON#
Interval256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR12~28V DC-In with 4-pin plug PWR cable or DC Jack (Screw type)
Power OnAT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp0ºC ~ 60ºC
Storage Temp-40° C ~ 85° C
Operating Humidity5% ~ 90%
Storage Humidity5% ~ 90%

Accessories

Bulk Package1 x I/O Shield (13G020709000AK)
1 x I/O Shield THIN (13G020709010AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package1 x I/O Shield (13G020709000AK)
1 x I/O Shield THIN (13G020709010AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
2 x COM Cable (14G000006910AK)
1 x SATA Power Cable (14G000100410AK)
2 x SATA Data Cable (14G00010107DAK)


说明 资讯 操作系统 日期 下载
BIOS 1.40 1. Update Intel ME package 2. Update LAN driver 3. Enhance system compatibility 2025-02-14
Jumpers and Headers Setting Guide 快速跳线手册 2025-02-14
User Manual 用户手册 2025-02-14
Realtek high definition audio driver ver:9057_FF00 驱动程序 Win 10 x 64 2025-02-14
INF driver ver:10.1.18460.8229 驱动程序 Win 10 x 64 2025-02-14
VGA driver ver:27.20.100.8935 驱动程序 Win 10 x 64 2025-02-14
Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.7.10400.15556 驱动程序 Win 10 x 64 2025-02-14
Intel Management Engine driver ver:15.0.0.1320_CORP_SW_DCH 驱动程序 Win 10 x 64 2025-02-14
Intel Lan driver ver:27.4 驱动程序 Win 10 x 64 2025-02-14
Realtek high definition audio driver ver:9057_FF00 驱动程序 Win 11 x 64 2025-02-14
INF driver ver:10.1.18460.8229 驱动程序 Win 11 x 64 2025-02-14
VGA driver ver:27.20.100.8935 驱动程序 Win 11 x 64 2025-02-14
Intel Dynamic Platform and Thermal Framework (Intel DPTF) driver ver:8.7.10400.15556 驱动程序 Win 11 x 64 2025-02-14
Intel Management Engine driver ver:15.0.0.1320_CORP_SW_DCH 驱动程序 Win 11 x 64 2025-02-14
Intel Lan driver ver:27.4 驱动程序 Win 11 x 64 2025-02-14
